Automated Welding Systems



Improve productivity with the NA-5 automatic wire feeders. These systems have been specially designed to deposit significant amounts of weld metal at fast travel speeds on thick materials.



FEATURES

Operating Versatility - Choice of gear ratios allows the use of a wide range of wire sizes and wire feed speeds.



Compact Units With Excellent Flexibility Mountable on simple fixtures or the most complex automated production lines.



Rugged Construction - Minimizes downtime and maintenance costs.



RECOMMENDED LINCOLN ELECTRIC POWER SOURCES -

  • Idealarc® DC-600
  • DC-655
  • DC-1000
  • DC-1500
  • CV-655.



WHAT’S REQUIRED

  •  Nozzle Assembly
  •  Control Cable
  •  Weld Power Cable
  •  Power Source
  • Wire Reel(s) and mounting



WHAT’S INCLUDED

  • 10 ft. (3.1 m) Control Cable
  • Specific Drive Roll Kit with Each Head
  • Wire Straightener with Each Head



AVAILABLE MODELS FOR SUBMERGED ARC WELDING

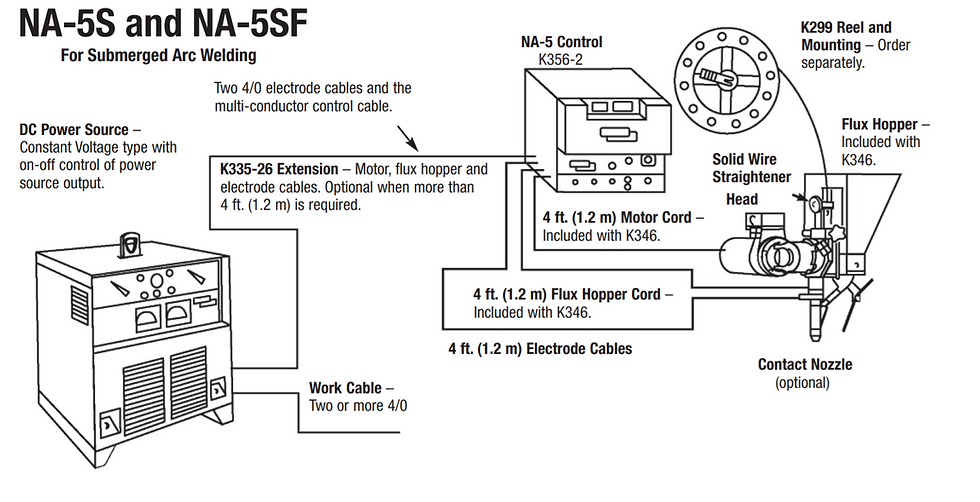

NA-5S HEAD - Includes wire feed head with straightener for solid wire, flux hopper with automatic valve and head mounting. Also includes electrode cables from the control box to wire contact assembly, and cross-seam adjuster. Does not include a control box or wire reel, brake and mounting. Order K346A, K346B



NA-5SF HEAD - Includes wire feed head with straightener for solid wire. Does not include control box or wire reel, brake and mounting, flux hopper with automatic valve and head mounting, cross seam adjuster, head mounting parts or electrode cable from control box to wire contact assembly. Order K347A, K347B

NA-5 Control and Heads - Lincoln Electric
